Description

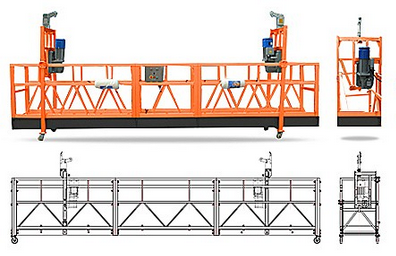

ZLP630 Gondola machine is for temporary applications for lifting people and their working equipment – at unlimited heights.
The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.
Safety systems
To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:
1. Service brake incorporated in the LTD hoist.
2. Two fall arrest devices acting on the safety wire ropes.
3. Two upper limit switches.
4. No power descent in case of power failure.
5. Emergency stop.
6. Phase controller. (Option)
7. Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
The parameters of ZLP series suspended platform
| Tpye | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 500kg | 630kg | 800kg | 1000kg |
| Lifting speed | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage-3phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.1×2 | 1.5×2 | 1.8×2 | 2.0×2 |
| Hoist | LTD50 | LTD63 | LTD80 | LTD100 |
| Safety lock | LSF308 | LSF308 | LSF309 | LSF310 |
| Dia.of Wire Rope | 4×31SW+FC-8.3mm | 4×31SW+FC-8.3mm | 4×31SW+FC-9.1mm | 4×31SW+FC-10.2mm |
| Plateform Size (L×W×H) | (2.5×2)×0.76×1.45M | (2×3)×0.76×1.45M | (2.5×3)×0.76×1.45M | (2.5×3)×0.76×1.45M |
| Weight of Suspended Jibs | 340kg | 340kg | 340kg | 340kg |
| Weight of Lifting Part | 410kg(Steel) 290kg(Aluminum) | 450kg(Steel) 310kg(Aluminum) | 520kg(Steel) 340kg(Aluminum) | 520kg(Steel) 340kg(Aluminum) |
| Counter Weight | 800kgs | 900kgs | 1000kgs | 1200kgs |
| 20GP Qty Of Package | 10Sets | 10Sets | 9Sets | 9Sets |
| *The weight of lifting part includes platform,hoist,safety locks and electric control system. | ||||
Product details

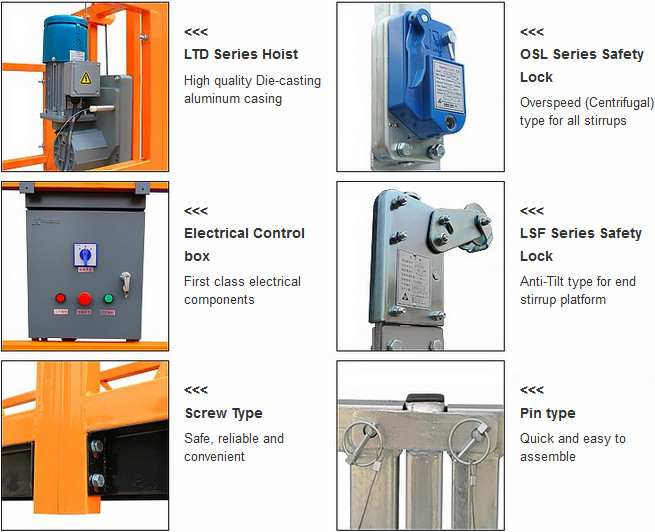

Gondola machine Details
Perfect the details of the process and quality is the guarantee
Platform Suspension
End stirrup:Fitted at the ends of the platform.
Advantages:The most economical and lightweight version, although showing extraordinary performances.
Frame stirrup:Slipped over the platform like a “frame”.
Advantages:The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup.
“L” stirrup:Placed at the rear of the platform behind the workers.
Advantages:The working surface is completely clear and the whole façade can be easily accessed.
Anchoring Options
| Light Parapet clamp | Parapet clamp | Normal suspension jibs |
| In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms. | ||
Double-Deck Platform
The ZLP platform can be easily transformed in a double-deck platform using especially designed attachment rods.
Accessory for Suspended Platform
Quick Details
Place of Origin: shanghai, China (Mainland)
Brand Name:SUCCESS
Model Number: ZLP
Driving method:Electric power
Material: Aluminium
Platform Mounting: Screw type
Certification: ISO9001:2008/CE/TUV
Platform suspension:End stirrup
Anchoring options: Suspension jibs
Color: Customized
Name: Gondola machine
Application: Hanging scaffold platform
Type: ZLP
