Detailed Product Description

ZLP Series ZLP500 , ZLP630 , ZLP800 , ZLP1000 Rope Suspended Platform For Building Construction

Applications:
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

Specifications:



Property Model No. ZLP500 ZLP630 ZLP800 ZLP1000
Rated load(kg) 500 630 800 1000
Lifting speed(m/min) 9~11 9~11 8~10 8~10
Motor power(kw) 2×1.5 50HZ/60HZ 2×1.5 50HZ/60HZ 2×1.8 50HZ/60HZ 2×2.2
50HZ/60HZ
Brake torque(Km) 16 16 16 16
Steel rope angle adjusting range(°) 3°- 8° 3°- 8° 3°- 8° 3°- 8°
Distance between two steel rope(mm) ≤100 ≤100 ≤100 ≤100
Rated stretch of front beam(mm) 1500 1500 1500 1500
Suspending platform Locking Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Nr.Of platform rack Single rack Single rack Single rack Single rack
Nr.Of platform 2 3 3 3
L×W×H(mm) (2000×2)×690×1300 (2000×3)×690×1300 (2500×3)×690×1300 (2500×3)×690×1300
Weight(kg) 350 Kg 375 Kg 410 Kg 455kg
Suspending mechanism(kg) 2×175 Kg 2×175 Kg 2×175 Kg 2×175 Kg
Counterweight(kg) optional 25×30pcs 25×36pcs 25×40pcs 25×44pcs
Diameter of steel rope(mm) 8.3 8.3 8.6 8.6
Max Lifting height(m) 300 300 300 300
Motor rotation speed(r/min) 1420 1420 1420 1420
Voltage(v) 3PHASES 220V/380V/
415V
220V/380V/
415V
220V/380V/
415V
220V/380V/
415V

 Competitive advantages:

1.Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist;
Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;
Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.

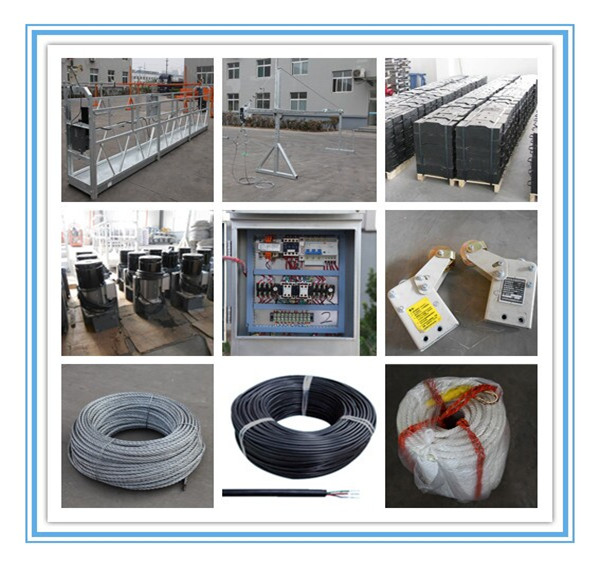

Components:

Container Packing:



, ,
