Detailed Product Description
Color: Red, Yellow, Green, Silver (can Be Customized)
Size: (2500 X 3) X 690 X 1300mm
Lifting Speed: 9-11m/min
Motor Powe: 2 X 1.5kw
Steel Rope Angle Adjusting Range(°): 3°- 8°
Diameter Of Steel Rope: 8.3mm

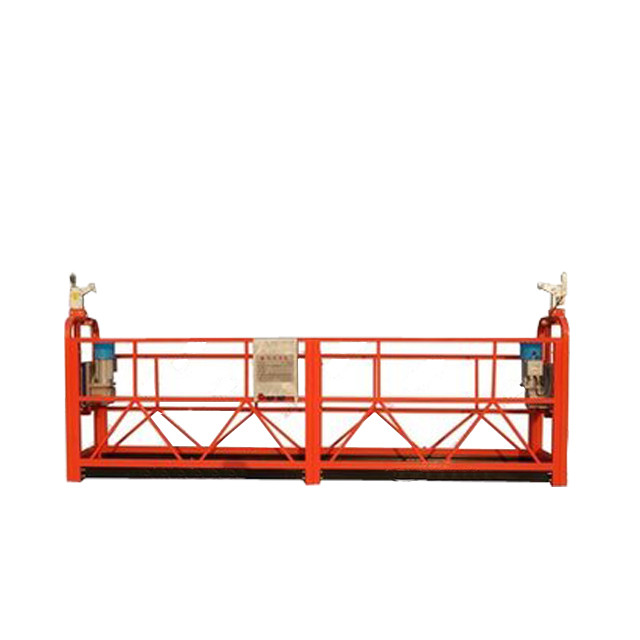

Commercial Aluminum maintenance cradle Window Cleaning Equipment
Descriptions:
Quick Detail:
1. Model No.: ZLP630
2. Brand Name: HAOKE
3. Material: Steel / Aluminum
4. Appearance: Steel / Hot Galvanized / Aluminum
5. Capacity Loading: 630 KG
6. Lifting Height: Maximum 300 Mts
7. Counterweight: Concrete, Concrete with steel cover, Iron
Technical Parameters:
| Property Model No. | ZLP630 | |
| Rated load(kg) | 630 | |
| Lifting speed(m/min) | 9～11 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | |
| Brake torque(Km) | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | |
| Suspending platform | Locking | Aluminum alloy |
| Nr.Of platform rack | Single rack | |
| Nr.Of platform | 3 | |
| L×W×H(mm) | (2000×3)×690×1180 | |
| Weight(kg) | 375 Kg | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) optional | 25×36pcs | |
| Diameter of steel rope(mm) | 8.3 | |
| Max Lifting height(m) | 300 | |
| Motor rotation speed(r/min) | 1420 | |
| Voltage(v) 3PHASES / Single Phase | 220V/380V/415V,50/60Hz (customized) | |
Competitive advantages:
1. Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)

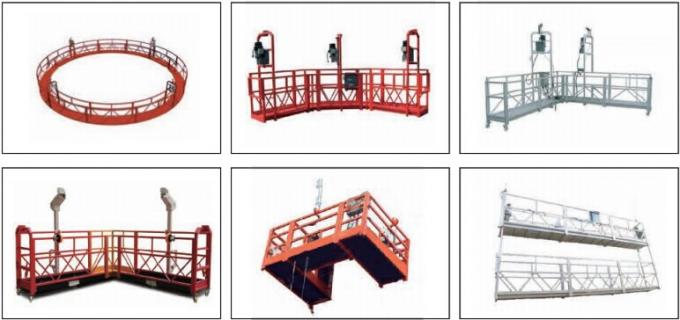

6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
