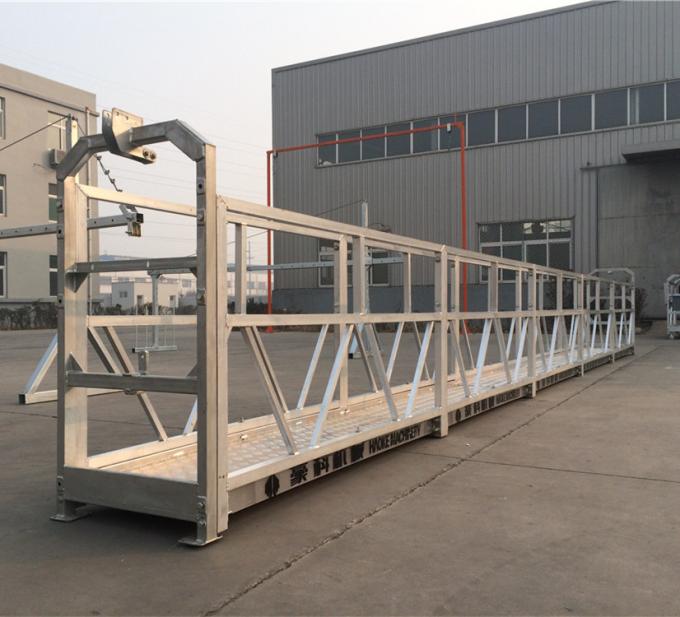

The Parameters of ZLP series Suspended Platform
| Property Model No. | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load(kg) | 500 | 630 | 800 | 1000 | |
| Lifting speed(m/min) | 9～11 | 9～11 | 8～10 | 8~10 | |
| Motor power(kw) | 2×1.5 50HZ/60HZ | 2×1.5 50HZ/60HZ | 2×1.8 50HZ/60HZ | 2×2.2 50HZ/60HZ | |
| Brake torque(Km) | 16 | 16 | 16 | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | 3°- 8° | 3°- 8° | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | ≤100 | ≤100 | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | 1500 | 1500 | 1500 | |
| Suspending platform | Locking | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Nr.Of platform rack | Single rack | Single rack | Single rack | Single rack | |
| Nr.Of platform | 2 | 3 | 3 | 3 | |
| L×W×H(mm) | (2000×2)×690×1300 | (2000×3)×690×1300 | (2500×3)×690×1300 | (2500×3)×690×1300 | |
| Weight(kg) | 350 Kg | 375 Kg | 410 Kg | 455kg | |
| Suspending mechanism(kg) | 2×175 Kg | 2×175 Kg | 2×175 Kg | 2×175 Kg | |
| Counterweight(kg) optional | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | 8.3 | 8.6 / 9.1 | 8.6 / 9.1 | |
| Max Lifting height(m) | 300 | 300 | 300 | 300 | |
| Motor rotation speed(r/min) | 1420 | 1420 | 1420 | 1420 | |
| Voltage(v) 3PHASES/Single Phase | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | 220V/380V/ 415V | |
FAQ
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal, West Union
Q: How can I get sample how long will it takes?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide didscount based on the order volume.
Q: What’s the MOQ?
A. Our MOQ is 1 set.
Q: What’s the delivery time:
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: Can I have my own customized product?
A: Yes, we attach great importance to quality control. All products must be strictly tested before launching to the market. Our products are CE and ISO9001 certified.
Q: Can I have my own customized product?
A. Yes, your customized requirement for color, logo, design, package, carton mark etc is welcome.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Our suspended platform can be shipped by sea, air, express, it just depend on the quantity.
Key Point:
Max lifting height: 300meters
Main model: ZLP500, ZLP630, ZLP800, ZLP1000
Types: Painted, hot galvanized, aluminum alloy;
Voltage: 220v/380V/415V/50/60HZ 3phases
Counterweight: Cement, cement with steel cover, Iron-casting counterweight;
H.S Code: 8428909090
Certification: CE & ISO
We can also customize for you.
