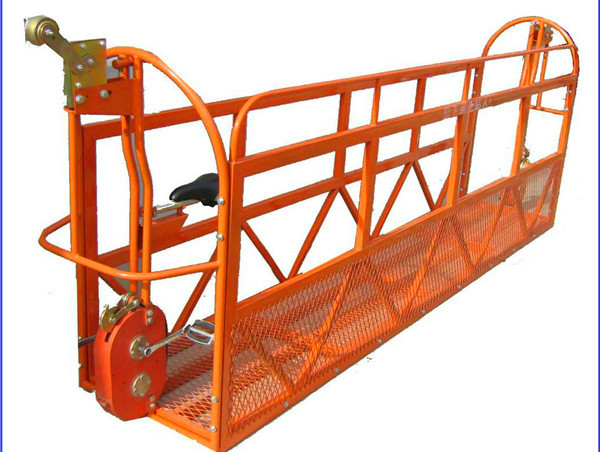

6m 1.5kw 630kg Painted Scaffold Working Platforms Aluminum With Steel Wire 8.3mm
Description:
Haoke Building Machinery Equipment Co., Ltd. is founded in 2005. It is a leading high-tech enterprise specialized in research, development and manufacturer of electrical suspended
Platform, building hoist and other various kinds of construction equipments. Our products with professional quality, competitive price and fast delivery. We can customized according to your requirements.
Applications:

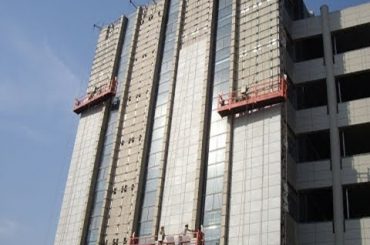

1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
Technical Parameters
| Model No. | ZLP630 | |
| Rated load(kg) | 630 | |
| Lifting speed(m/min) | 9~11 | |
| Motor power(kw) | 2×1.5, 50HZ/60HZ | |
| Brake torque(Km) | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | |
| Suspending Platform | Locking | Aluminum alloy |
| Nr.Of platform rack | Single rack | |
| Nr.Of platform | 3 | |
| L×W×H(mm) | (2000×3)×690×1180 | |
| Weight(kg) | 375 Kg | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) optional | 25×36pcs | |
| Diameter of steel rope(mm) | 8.3 | |
| Max Lifting height(m) | 300 | |
| Motor rotation speed(r/min) | 1420 | |
| Voltage(v) 3PHASES | 220V/380V/415V (customized) | |
