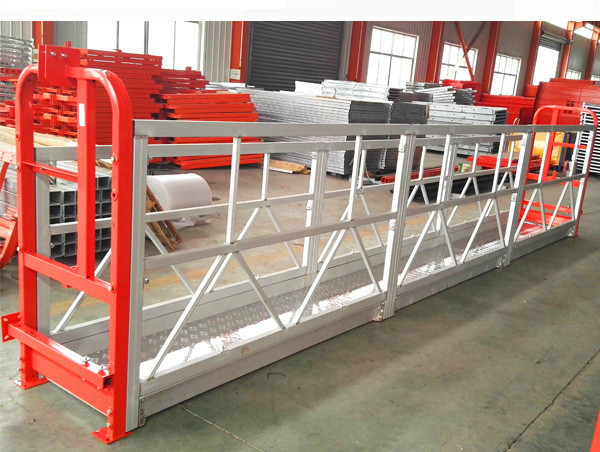

2 Sections 500kg Suspended Access Platforms With 3 Types Counter Weight
SUCCESS brand ZLP Series suspended platform with unique top quality in the field of climbing and decorating machinery, which embody on excellent material, advanced design, refined manufacturing and good service. HAOKE make the most comprehensive models of suspended platform which with most wide range of applications in China. For example, specialized suspended platform for high-rise elevator shaft installation; granary and colliery security explosion-proof platform; dedicated platform for high-rise building tower crane; customized platform for shipbuilding welding and decoration; professional platform for large tank chimney and boiler maintenance; maintenance and decorative platform for dam and bridge; maintenance for exterior wall such as decorate, maintain and clean the external walls of high-level multi-storey buildings and exterior construction, cement coating, veneer, painting, installing the glass curtain walls as well as cleaning and maintenance.
Applying this product can release scaffold free, reduce the construction cost and the efficiency will be greatly increased. Meanwhile, the production is simple, flexible, easy transfer, easy to operate, safe and reliable.
Technical Parameters:
| Model No. | ZLP500 | |
| Rated load(kg) | 500 | |
| Lifting speed(m/min) | 9 – 11 | |
| Motor power(kw) | 2×1.5, 50HZ/60HZ | |
| Brake torque(Km) | 16 | |
| Steel rope angle adjusting range(°) | 3°- 8° | |
| Distance between two steel rope(mm) | ≤100 | |
| Rated stretch of front beam(mm) | 1500 | |
| Suspending Platform | Locking | Aluminum alloy |
| Nr.Of platform rack | Single rack | |
| Nr.Of platform | 3 | |
| L×W×H(mm) | (2000×3)×690×1300 | |
| Weight(kg) | 410 Kg | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) optional | 25×44pcs | |
| Diameter of steel rope(mm) | 8.3 | |
| Max Lifting height(m) | 300 | |
| Motor rotation speed(r/min) | 1420 | |
| Voltage(v) 3PHASES/SINGLE PHASE | 220V/380V/415V (customized) | |
