Suspended Working Platform Manufacturer Guide
Suspended Working Platform Manufacturer Guide is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The final platform length, rated load, electrical supply and suspension arrangement should be confirmed for the actual project.
This suspended platform is ideal for building facade construction, decoration, cleaning and maintenance.
ZLP series suspended platform, which is developed and produced by us, is ideal for building facade construction, decoration, cleaning and maintenance. It is also widely used in elevator installing, ship building and repairing, or in other areas such as big-size tank, bridge, embankment and chimney. ZLP series versatile knock-down platform provides workers safer, easier and more efficient platform access.
Functions and Usage of New Age Suspended Working Platform
1.Decorating and construction for the external wall of the high-rise building, installing curtain wall and exterior component.
2.Repairing, checking, maintenance and cleaning for the external wall of the high-rise building.
3.Construction, repairing and maintenance for large-scale projects such as large tank, chimney, dams, bridges, derrick.
4.Welding, cleaning and painting for large ships
5.Installing billboard For the high-rise Buildings.

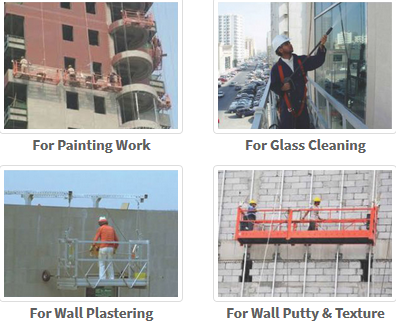

Usage of Suspended Working Platform

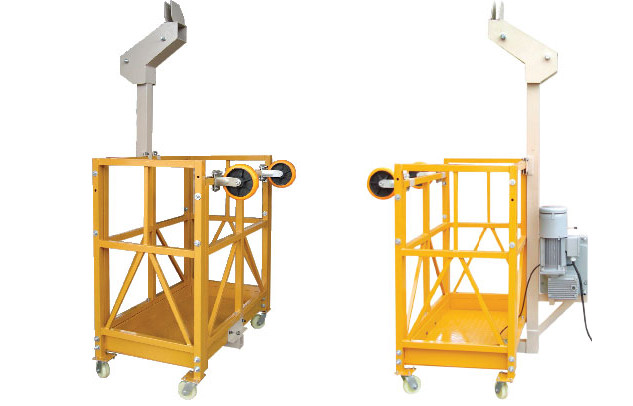

ZLP250
Standard Accessories of ZLP250 Suspended Working Platform
| Type | ZLP250 | ||
|---|---|---|---|
| Rated Load | 300 kg. | ||
| Lifting Speed | 8.2 m/min | ||
| Max Lifting Height | 100 Meter | ||
| Dimension of platform (L X W X H) | 1.2X0.69X1.18m | ||
| Suspension Mechanism | Front beam overhang | 1.3 ~ 1.6 m | |
| Adjustable Height | 1.15 ~ 1.6 m | ||
| Hoist | Model | LTD 8.0 | |
| Lifting force | 8 KN | ||
| Motor | Power | 1.8 KW | |
| Voltage | 415 V, 50 HZ, 3phase | ||
| Rotation speed | 1400 R/Min. | ||
| Brake Torque | 15.2 Nm | ||
| Safety lock | Type | Tilt proof safety lock | |
| Locking cable angel | – | ||
| Allowable impulsive force | 20 KN | ||
| Weight | Suspension platform including hoist, safety lock, electric control panel. | 198 kg | |
| Suspension mechanism | 162 kg | ||
| Counterweight | 500 kg | ||
| Whole machine weight without steel wire rope & power cable | 860 kg | ||
| Wire rope | Type | 4X31SW+FC-8.6 | |
| Platform type | Plastic coated | ||

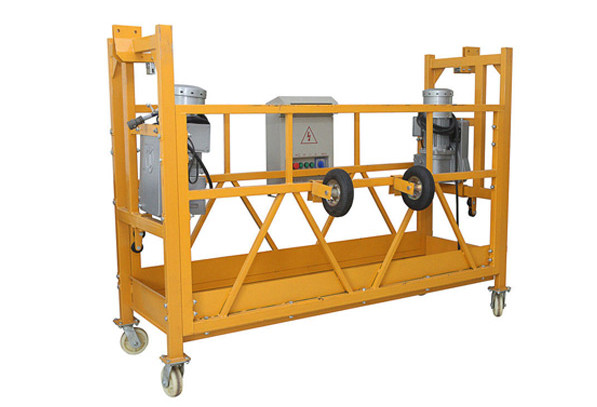

ZLP800 – 1 (2.5)
Standard Accessories of ZLP800 – 1 (2.5) Suspended Working Platform
| Type | ZLP800 – 1 (2.5) | ||
|---|---|---|---|
| Rated Load | 400 kg. | ||
| Lifting Speed | 8.2 m/min | ||
| Max Lifting Height | 100 Meter | ||
| Dimension of platform (L X W X H) | 2.5m X 0.76m X 1.45m | ||
| Suspension Mechanism | Front beam overhang | 1.3 ~ 1.7 m | |
| Adjustable Height | 1.15 ~ 1.75 m | ||
| Hoist | Model | LTD 8.0 | |
| Lifting force | 8 KN | ||
| Motor | Power | 1.8 KW | |
| Voltage | 415 V, 50 HZ, 3phase | ||
| Rotation speed | 1400 R/Min. | ||
| Brake Torque | 15.2 Nm | ||
| Safety lock | Type | Tilt proof safety lock | |
| Locking cable angel | 3-8 degree | ||
| Allowable impulsive force | 20 KN | ||
| Weight | Suspension platform including hoist, safety lock, electric control panel. | 270 kg | |
| Suspension mechanism | 400 kg | ||
| Counterweight | 750 kg | ||
| Whole machine weight without steel wire rope & power cable | 1420 kg | ||
| Wire rope | Type | 4X31SW+FC-8.6 | |
| Platform type | Plastic coated | ||

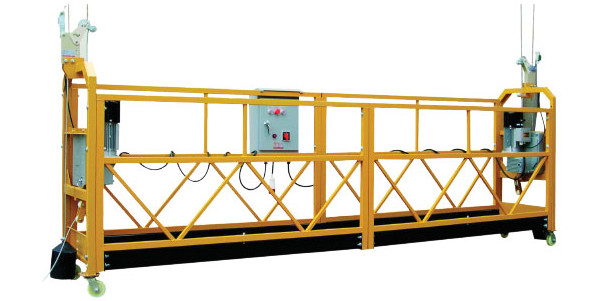

ZLP500
Standard Accessories of ZLP500 Suspended Working Platform
| Type | ZLP 500 | ||
|---|---|---|---|
| Rated Load | 400 kg | ||
| Lifting Speed | 9 m/min | ||
| Max Lifting Height | 100 Meter | ||
| Dimension of platform (L X W X H) | (2.5m + 2.5m) X 0.76m X 1.45m | ||
| Suspension Mechanism | Front beam overhang | 1.3 ~ 1.7m | |
| Adjustable Height | 1.15 ~ 1.75 m | ||
| Hoist | Model | LTD 8.0 | |
| Lifting force | 8 KN | ||
| Motor | Power | 1.8 KW | |
| Voltage | 415 V, 50 HZ, 3 phase | ||
| Rotation speed | 1400 R/Min. | ||
| Brake Torque | 15.2 Nm | ||
| Safety lock | Type | Tilt proof safety lock | |
| Locking cable angel | 3-8 degree | ||
| Allowable impulsive force | 20 KN | ||
| Weight | Suspension platform including hoist, safety lock, electric control panel. | 360 kg | |
| Suspension mechanism | 400 kg | ||
| Counterweight | 750 kg | ||
| Whole machine weight without steel wire rope & power cable | 1510 kg | ||
| Wire rope | Type | 4X31SW+FC-8.6 | |
| Platform type | Plastic coated | ||

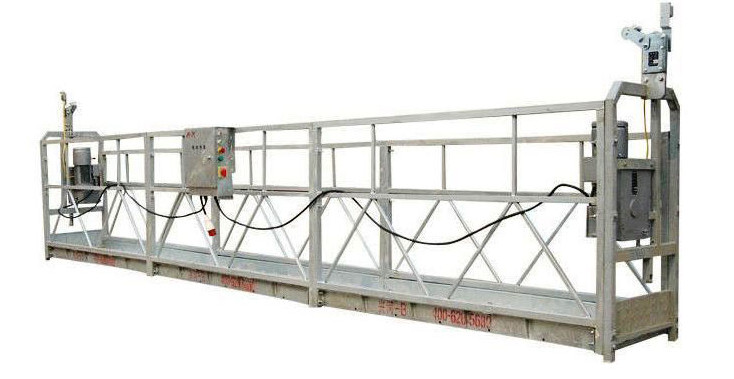

ZLP800-7.5mtr
Standard Accessories of ZLP800-7.5mtr Suspended Working Platform
| Type | ZLP800-7.5mtr | ||
|---|---|---|---|
| Rated Load | 800 kg | ||
| Lifting Speed | 9 m/min | ||
| Max Lifting Height | 100 Meter | ||
| Dimension of platform (L X W X H) | (2.5m X 2+1m+1.5m)X0.76mX1.45m | ||
| Suspension Mechanism | Front beam overhang | 1.3 ~ 1.7 m | |
| Adjustable Height | 1.15 ~ 1.75 m | ||
| Hoist | Model | LTD 8.0 | |
| Lifting force | 8 KN | ||
| Motor | Power | 1.8 KW | |
| Voltage | 415 V, 50 HZ, 3 phase | ||
| Rotation speed | 1400 R/Min. | ||
| Brake Torque | 15.2 Nm | ||
| Safety lock | Type | Tilt proof safety lock | |
| Locking cable angel | 3-8 degree | ||
| Allowable impulsive force | 30 KN | ||
| Weight | Suspension platform including hoist, safety lock, electric control panel. | 540 kg | |
| Suspension mechanism | 400 kg | ||
| Counterweight | 1000 kg | ||
| Whole machine weight without steel wire rope & power cable | 1940 kg | ||
| Wire rope | Type | 4X31SW+FC-8.6 | |
| Platform type | Plastic coated | ||

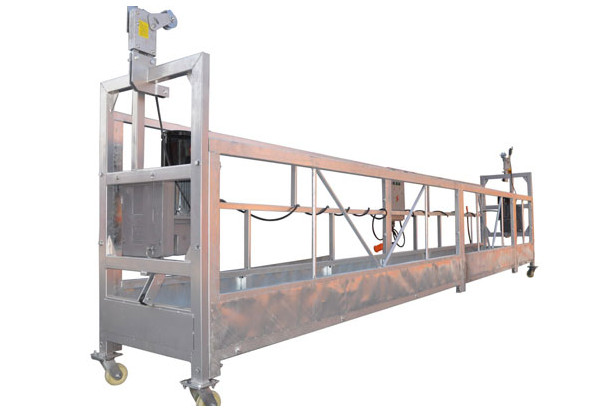

ZLP1000
Standard Accessories of ZLP1000 Suspended Working Platform
| Type | ZLP1000 | ||
|---|---|---|---|
| Rated Load | 1000 kg. | ||
| Lifting Speed | 8.2 m/min | ||
| Max Lifting Height | 100 Meter | ||
| Dimension of platform (L X W X H) | (2.5m X 2+1m+1.5m)X0.76mX1.45m | ||
| Suspension Mechanism | Front beam overhang | 1.1 ~ 1.7 m | |
| Adjustable Height | 1.1 ~ 1.75 m | ||
| Hoist | Model | LTD 10.0 | |
| Lifting force | 10 KN | ||
| Motor | Power | 1.8 KW | |
| Voltage | 415 V, 50 HZ, 3 phase | ||
| Rotation speed | 1400 R/Min. | ||
| Brake Torque | 15.2 Nm | ||
| Safety lock | Type | Tilt proof safety lock | |
| Locking cable angel | 3-8 degree | ||
| Allowable impulsive force | 30 KN | ||
| Weight | Suspension platform including hoist, safety lock, electric control panel. | 650 kg | |
| Suspension mechanism | 400 kg | ||
| Counterweight | 1200 kg | ||
| Whole machine weight without steel wire rope & power cable | 2250 kg | ||
| Wire rope | Type | 4X31SW+NF-10.2 | |
| Platform type | Hot Dip Galvanized | ||
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our suspended working platform, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
