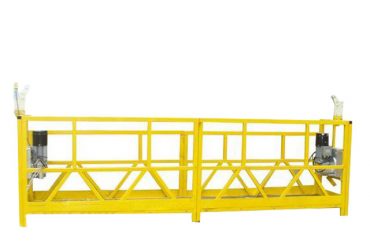

ZLP500 Suspended Gondola Platform for Construction
ZLP500 Suspended Gondola Platform for Construction is a temporary access configuration for facade construction, cleaning, painting or maintenance where a roof-suspended system is appropriate. The existing specification references zlp500. These values should be confirmed against the final supplied configuration and destination power supply.
Introduction
As professional manufacturer, we , success , only produce suspended platform with xinghe brand.Professional producing lines and technical team can supply you the best products and after-sales service.
To confirm the quality of goods, we choose the best material, some spare parts of hosit and safety lock we cast our brand.
With the unique design of wire rope clamping alarm device , it reduce the damage of hoist . When the wire rope is clamped , the alarm device rings, the hoist stops working.The important components of hoist , the warranty is 5~6 years, such as gear.
All the spare parts are produced by ourselves, no matter how long you have purchased, even if it has been 10~20 years, the spare parts will be supplied in time . we are mufacturer , not like some factories that purchase the components from other factories, and then install in their own factory
Product Description
Main Items : ZLP250 , ZLP500 , ZLP630, ZLP800, ZLP800 s drive(ZLP1000)
Technical parameters for ZLP Series Cradle / Suspended platform /Gondola / Hanging scaffolding
| Item | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP800 s drive (zlp1000) |
| Rated Loading | 250kgs | 500kgs | 630kgs | 800kgs | 1000kgs |
| Lifting Speed | ~9.5m/min | ~8.5m/min | ~8.3m/min | ||
| Platform size(L*W*H) | 2.5m, 5m , 6m ,7.5m ,8m or as your requirement | ||||
| Suspension Mechanism | Rated exerted length of front beam | 1.1m~1.5m | |||
| Terrain clearance of front beam | 1.45m~1.75m | ||||
| Hoist | |||||
| Type | LTD63 | LTD80 a drive | LTD80 s drive | ||
| Voltage | 220v, 380v ,415v 50/60 Hz 3 phase | ||||
| Power | 1.5kw | 1.8kw ,2.0kw | 2.2kw | ||
| Speed | 1400 n/min1400n/min | ||||
| Safety lock | |||||
| type | LS30 | ||||
| Angle of tilted locking rope | 3°~8° | ||||
| Allowable impact force | 30KN | ||||
| Wire rope | |||||
| Type | 4*31SW+FC-φ8.3 Broken pulling force≥53500N | 4*31SW+FC-φ8.6 Broken pulling force≥62500N | |||
| Constrol panel | |||||
| Electric parts brand | CHNT | Schneider | |||
| Conter weight | ||
| Iron cast | Cement | Hot galvnized steel sheet with concrete |
Product show
1.Suspension mechanism &Platform
Surface treatment with hot galvanized craft, the steel is not easy to rust .
The service life can be as long as 15 years , more durable than spraying process.
2.Hoist
With famous brand of motor , large braking torquei
Inside gear is 100% copper, the warranty is 5 years.
unique anti-rope clamping device , when the rope is clamped , the alarming rings, the motor stops working , so that factor of safety is increased, meantime maintenance cost of hoist is reduced
Lubrication oil is 220#industry gear oil.
3.Safety lock
The lock cylinder uses special stainless steel , with strong impact resistance, higher toughness,wear resistant, longe services life ,safe and reliable
4.Electric control system
The electric components uses famouse brand CHNT, SCHNEIDER,quality is guaranteed
Perfect circuit design, including leakage protection, current overload protection,emergency braking,operate simply.
5.Wire rope
Our supplier is Jiangsu Fasten Steel Cord Co.,Lt—Chinese famous brand”FASTEN”
6.Cable
Using national standard cable 2.5*3+1.5*2, using life is longer
Packaging & Shipping
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
advantage
•The product of each order will be strictly tested one by one, the whole machinery will be test by over loading.
• All of the components are produced by ourselves workers, the quality and the delivery time can be ensured.
•As a factory, the cost of the goods can be controlled very well, you can get a more competitive price.
•We can supply the online technical guidance, if your order quantity reaches our requirement, we can arrange our technical team to your country to setting equipment.
Quick Details
Place of Origin: shanghai, China (Mainland)
Brand Name: SUCCESS
Model Number: ZLP630,ZLP800
Material: Hot Galvanized Aluminum
Platform size: 3*2000/2500*690*1180mm
Rated Loading Capacity: 630kg 800kg
Lifting height: Standard 100m
Hoist type: LTD63 LTD80
Hoist power: 2*1.5kw 2*2.0kw
Hoist voltage: 220v/380/415v 50/60hz
Safety lock: Tilt Proof Safety Lock (2 No.s)
Wire rope diameter: 4*31SW-FC 8.3mm 8.6mm
Warranty: 1 Year
Configuration and Applications
Model selection should consider the complete working load, platform section arrangement, building height, facade geometry and operating environment. A higher model rating does not allow the platform length or carried load to exceed the approved system limits.
Project Information Required
- Building height and required working length
- Workers, tools and material load
- Voltage, phase and frequency
- Roof parapet, suspension beam and counterweight conditions
Review our suspended gondola, browse the product article library, or send the project requirements to Shanghai Success Construction International Trade Co., Ltd. Site planning should follow applicable local regulations and the OSHA suspended scaffold requirements.
