Detailed Product Description
Color: Yellow, Orange, Red, Silver (can Be Customized)
Rated Load: 1000kg
Lifting Speed: 8-10 M/min
Max. Lifting Height: 300m
Szie Of Platform: 10000 X 690 X 1300mm
Motor Power: 2 X 2.2kw
Diameter Of Steel Wire: 9.1mm
Aluminum 7.5m Rope Suspended Platform 1000KG With Single Phase
HAOKE brand ZLP Series suspended platform with unique top quality in the field of climbing and decorating machinery, which embody on excellent material, advanced design, refined manufacturing and good service.
HAOKE make the most comprehensive models of suspended platform which with most wide range of
applications in China. For example, specialized suspended platform for high-rise elevator shaft installation;granary and colliery security explosion-proof platform; dedicated platform for high-rise building tower crane;customized platform for shipbuilding welding and decoration; professional platform for large tank chimney and boiler maintenance; maintenance and decorative platform for dam and bridge; maintenance for exterior wall such as decorate, maintain and clean the external walls of high-level multi-storey buildings and exterior construction, cement coating, veneer, painting, installing the glass curtain walls as well as cleaning and maintenance.Applying this product can release scaffold free, reduce the construction cost and the efficiency will be greatly increased. Meanwhile, the production is simple, flexible, easy transfer, easy to operate, safe and reliable.
|Motor power(kw)||2×2.2, 50HZ/60HZ|
|Steel rope angle adjusting range(°)||3°- 8°|
|Distance between two steel rope(mm)||≤100|
|Rated stretch of front beam(mm)||1500|
|Suspending Platform||Locking||Aluminum alloy|
|Nr.Of platform rack||Single rack|
|Suspending mechanism(kg)||2×175 Kg|
|Diameter of steel rope(mm)||8.6|
|Max Lifting height(m)||300|
|Motor rotation speed(r/min)||1420|
|Voltage(v) 3PHASES/SINGLE PHASE||220V/380V/415V (customized)|

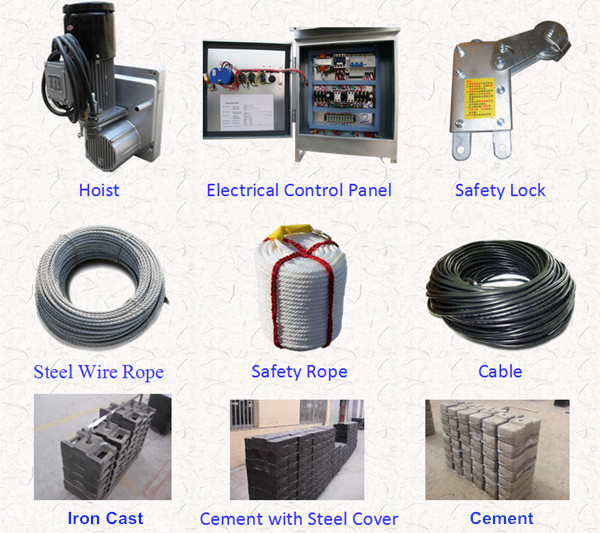

1. Platform: Steel and Aluminum optional. Painted and Hot Galvanized surface treatment optional.
2. Suspension Mechanism: Painted and Hot Galvanized surface treatment optional.
3. Hoist: Model No. LTD6.3 (1.5kw), LTD8.0 (1.8kw) & LTD10.0 (2.2kw).
4. Electric Control Box: Scientific design, waterproof and anti-collision, the inner parts with brand CHINT
5. Safety Lock: Dacro stainless steel, high intensity; It can lock the steel rope immediately when the
suspended platform tilts; 100% qualified.
6. Steel Wire Rope: diameter 8.3mm, 8.6mm, 9.1mm optional.
7. Safety Rope: diameter 18mm, breaking force 47250N.
8. Cable: GB2.0 level, weather resistance natural rubber.
9. Counterweight: Concrete, Concrete with steel cover & Cast iron optional.
1. Absolutely guarantee life safety during Aerial working
Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop;Good-quality steel wire rope, safety rope and cable.
2. Stable performance: raise up and lower down smoothly
3. Modular design. Easy to disassemble, assemble operate and maintain.
4. Lifting height can be adjusted according to requirement (Maximum 300 Meters)
5. Working voltage and frequency can be adjusted (220V/380V/415V etc.)
6. Suspended platform for special usage can be customized (circular, L shape, U shape, etc)
7. Professional quality, competitive price, fast delivery, good services.
